Multi-shaft mixers

Nov. 11, 2022
VersaMix Multi-Shaft Mixers from ROSS are ideal for processing medium- to high-viscosity applications up to several hundred thousand centipoise, such as thick slurries, pastes, gels and suspensions.
Courtesy of Ross Mixers
Multi Shaft Mixers

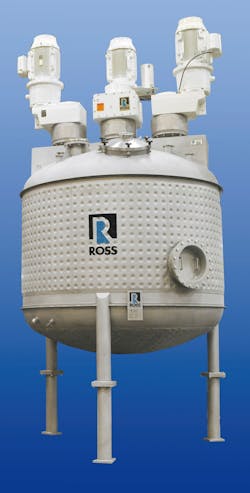

VersaMix Multi-Shaft Mixers from ROSS are ideal for processing medium- to high-viscosity applications up to several hundred thousand centipoise, such as thick slurries, pastes, gels and suspensions. Pictured is a 3,000-gallon VersaMix Model VM-3000 equipped with a custom combination of three agitators each driven by a 60 HP TEFC inverter-duty motor. The three-wing anchor and two screw augers are all independently controlled with variable speeds, working together to ensure efficient batch turnover at every ingredient addition and mixing stage. These vacuum-rated VMC-3000’s are operated from an independent 15-inch NEMA 4X touchscreen control panel. The mixers also feature stainless steel type 304 dimpled, dual-zone jackets designed for 100 psig at 200oF. VersaMix models range from laboratory to large scale capacities up to 4,000 gallons

Ross Mixers

www.mixers.com
