Multi-shaft mixer for high-performance processing

July 31, 2025
Mixer combines anchor, high-speed disperser, and axial flow turbine agitation systems into one unit.
Courtesy of Ross Mixers

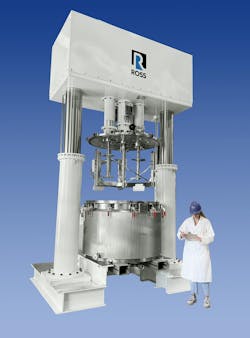

Ross VMC300

The ROSS VMC-300 multi-shaft mixer combines three independently driven agitation systems — anchor, high-speed disperser, and axial flow turbine technologies — into one unit to effectively manage complex and viscous formulations in the pharmaceutical, food, cosmetic, coatings, adhesives, composites, and other specialty chemical industries.

Constructed with stainless steel type 316 product contact parts, the VMC-300 has a 300-gallon working capacity and operates under full vacuum up to 29.5 in. Hg and internal pressure up to 15 psig at 300°F. The unit’s flat-bottomed mixing can includes a jacketed sidewall and bottom rated for up to 140 psig for heating and cooling. The mixer’s vacuum cover features multiple ports, including a sight glass window, LED tank light, RTD temperature probe and various process connections.

The three-wing anchor agitator spins at 36 rpm with a 30-HP explosion-proof motor, featuring a heavy-duty triangular cross-section design with helical flights and hinged Teflon scraper assemblies that wipe the vessel surfaces systematically. The high-speed disperser reaches speeds of up to 1,150 rpm with a 50-HP explosion-proof motor and features two 10-in. disperser blades for efficient powder wet-out and dispersion. Lastly, the high-speed axial flow turbine system uses a 50-HP explosion-proof motor to drive two 14-in. three-blade turbines for intense blending and circulation.

The mixer’s dual-post lift system has a 10-HP electrohydraulic power unit and pneumatic lift locks to automatically secure the mixer in the fully raised or maintenance positions. Additional safety features include proximity switches that stop the drive operation when the vacuum cover is lifted or when the mixing vessel is not in the proper mixing position.

The user-friendly control system contains a 12-in. color touchscreen for monitoring and adjustment of agitator speeds, loads, product temperature, vacuum level, and cycle timer. Variable frequency drives ensure precise speed control for all three agitators, while status indicators show mixer lift lock status and vessel placement. The explosion-proof electrical system is pre-wired for Class I Division 2 hazardous locations and includes safety interlocks.
