Designing a bucket elevator for efficiency and longevity

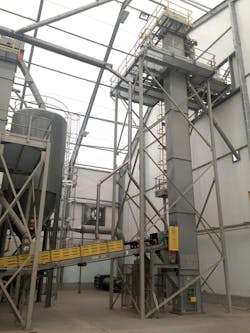

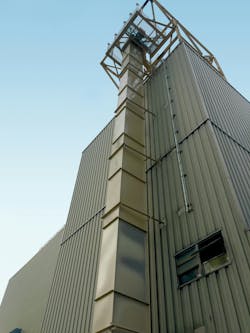

In today’s industrial processing environment, where reliability and uptime directly impact profitability, every piece of bulk handling equipment must be engineered for performance and durability. Among these systems, the bucket elevator plays a vital role for vertically conveying bulk solids in many industries such as fertilizer, mining, and chemical processing.

Despite their prevalence, bucket elevators are often treated as standard equipment. However, optimal performance hinges on tailoring the elevator design to the specific material characteristics and operating conditions. Properties such as flowability, bulk density, temperature, and abrasiveness affect nearly every design decision — from configuration and drive system to fabrication and maintenance access.

A poor design can lead to excessive wear, reduced throughput, unplanned downtime, and even early failure. To avoid these outcomes, bucket elevators should be engineered as fully integrated solutions, designed in alignment with the material, the operation, and long-term performance goals.

Risks of poor bucket elevator design

The risks associated with a poorly designed bucket elevator are varied and unique to each operation. In general, however, they often include:

• Reduced plant capacity
• Excessive component replacement
• Unnecessary downtime
• Increased maintenance costs and repairs
• Excess cleanup
• Inflated energy costs
• Wasted product
• Safety hazards
• Premature failure

To avoid these risks, design must start with the material.

Material-centric bucket elevator design

The key to an efficient and reliable bucket elevator is an accurate understanding of the material it will handle. Properties such as bulk density, particle size distribution, moisture content, temperature, abrasiveness, and friability all influence design decisions.

Centrifugal versus continuous bucket elevators

There are two primary bucket elevator configurations: centrifugal and continuous.

Centrifugal elevators. Centrifugal elevators are ideal for coarse materials that are not easily degraded. They operate at higher speeds, with the buckets scooping material from the boot section and discharging material at high velocity via centrifugal force in the head section.

Continuous elevators. Continuous elevators are well suited to fragile materials where maintaining product integrity is essential. Operating at slower speeds, the buckets are loaded through an inlet chute, and the material discharges via gravity onto the back of the preceding bucket in a slow, controlled manner.

Selecting the appropriate configuration ultimately depends on how the material responds to motion. Free-flowing, coarse materials are compatible with centrifugal action and high-speed discharge. Fragile or sticky materials, in contrast, require the slower, controlled flow of a continuous elevator.

Belt versus chain bucket elevators

The selection of a belt or chain is another decision dictated largely by the material and operating environment.

Belt elevators. Belt elevators are ideal for light- to moderate-duty applications where material is free flowing and temperature is not a concern. For such applications, a belt elevator is cost-effective and offers quiet operation.

Chain elevators. Chain elevators offer greater durability and can handle heavy, abrasive, or high-temperature materials. They are commonly used in mining, fertilizer production, and other demanding operations.

Ultimately, elevator style and drive system should not be chosen in isolation, but as a direct response to the material’s behavior and the demands of the overall process. Engineers must not only match the material’s properties, they must also consider plant layout, process integration, and future scalability.

Bucket elevator customization for process and safety

The material, as well as facility parameters, will also influence an array of decisions around equipment customizations.

Material of construction is one of the most essential considerations in bucket elevator design. Stainless steel, abrasion-resistant alloys, and appropriate coatings are often employed to extend equipment life when working with corrosive or abrasive materials (or when operating in otherwise challenging environments).

For example, an elevator designed for potash, which is both hygroscopic and corrosive, is likely to be constructed from stainless steel instead of carbon steel to resist chemical attack. Further, if the potash is hot, external insulation or a specialized paint application may also be necessary to reduce the potential for condensation, which contributes to increased corrosion. Features such as internal seal welds may also be incorporated to limit the material’s potential exposure to moisture.

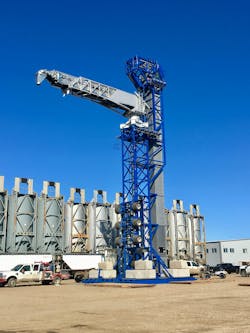

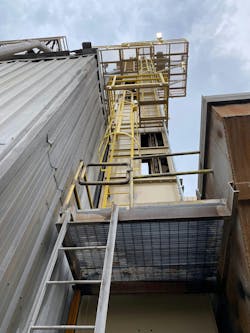

Other customizations are available as well, depending on material requirements. An elevator handling combustible material may require modifications such as dust pickoffs at the head section, explosion venting panels, or the incorporation of explosion suppression canisters. Fully seal-welded casings can also be utilized for dust containment, eliminating potential avenues of escape and keeping material contained.

In high-tonnage or super-capacity applications, oversized drive components such as shafts and bearings help to distribute load more effectively and reduce stress on individual parts for long-term reliability.

Likewise, careful selection of shaft seals, take-up systems, and other ancillary components can prevent material ingress, ensure proper belt/chain tension, and reduce maintenance frequency.

Bucket elevator facility integration and layout considerations

Bucket elevators must also be tailored to fit into the existing process flow and adapt to any space constraints (where applicable), all while meeting safety regulations. Customizations in this case might entail:

• Specialized inlet and discharge configuration
• Split casings for simplified installation and easier access
• Self-supporting frames for outdoor settings or where structural steel support is not otherwise available

These design decisions are not secondary; they are critical to building an elevator that performs reliably under real-world conditions.

Engineering bucket elevators for efficiency and reliability

In addition to customizing an elevator to its suited application, several factors go into designing a system that maximizes throughput, minimizes maintenance, and operates reliably for decades.

Sizing and throughput efficiency. Sizing a bucket elevator for efficiency means balancing bucket volume, spacing, speed, and casing dimensions to meet capacity needs without oversizing. Thoughtful adjustments — such as increasing fill percentage or upgrading bucket design — can significantly improve throughput while minimizing footprint and wear. These adjustments, however, must take into account the material’s flow behavior to prevent backflow and bottlenecks.

Weld quality and fabrication. The structural integrity of a bucket elevator is only as good as its fabrication. Fabrication techniques such as precision welding and component alignment play a direct role in vibration resistance, wear life, and safe operation.

Weld quality is pivotal to structural integrity and equipment longevity. Continuous, precision welds help maintain proper alignment, reduce vibration, and distribute mechanical stress evenly — especially in high-load or corrosive applications. Poor welding, by contrast, can lead to misalignment, cracking, material contamination, and unsafe operating conditions.

Fabricators must ensure that all components are manufactured to exact specifications and assembled within tight tolerances, as even small deviations can compound throughout the structure, especially in taller elevators. Any deviation in the design has the potential to lead to misalignment that disrupts discharge performance, causes internal interference, and creates tracking issues that compromise long-term reliability.

Manufacturers must incorporate rigorous quality control measures into their fabrication procedures — including dimensional checks, material traceability, and weld inspections/nondestructive testing, such as mag particle and dye penetrant testing — to ensure that the final product meets both engineering and fabrication expectations.

Designing bucket elevators for maintenance and lifecycle support

Bucket elevators should also be designed with future maintenance in mind, incorporating features such as access panels, gravity take-ups, and service platforms that make maintenance procedures and access to the equipment as simple as possible.

Additionally, integrated instrumentations such as zero-speed switches, bearing temperature sensors, and vibration monitors can be incorporated to help operators detect and address issues before they escalate, minimizing opportunities for catastrophic failure.

OEM support

Longevity is not just a function of materials and specs, it is also the result of service continuity. Working with an experienced OEM ensures access to expertise, replacement parts, and support for the life of the equipment. This includes:

• Installation support and retrofit expertise
• Spare parts provision
• Field services and audits

Thoughtful design maximizes value

Bucket elevators are essential in vertically conveying bulk materials, but their value is maximized only when they are designed around the specific characteristics of the material and the operational setting. Success lies in aligning every aspect of the system with the material, the operation, and the future — and in selecting a manufacturing partner who brings deep expertise to every step of the design and fabrication process.
