    1. Material Handling (Dry & Wet)

    The benefits of dust collector pulse valves

    Feb. 18, 2021
    Dust collector systems, like all other products, have gone through technological upgrades and innovative changes to make them more valuable to the customer by eliminating more dust and particulates from the air.
    Michael Russo
    Courtesy of Emerson

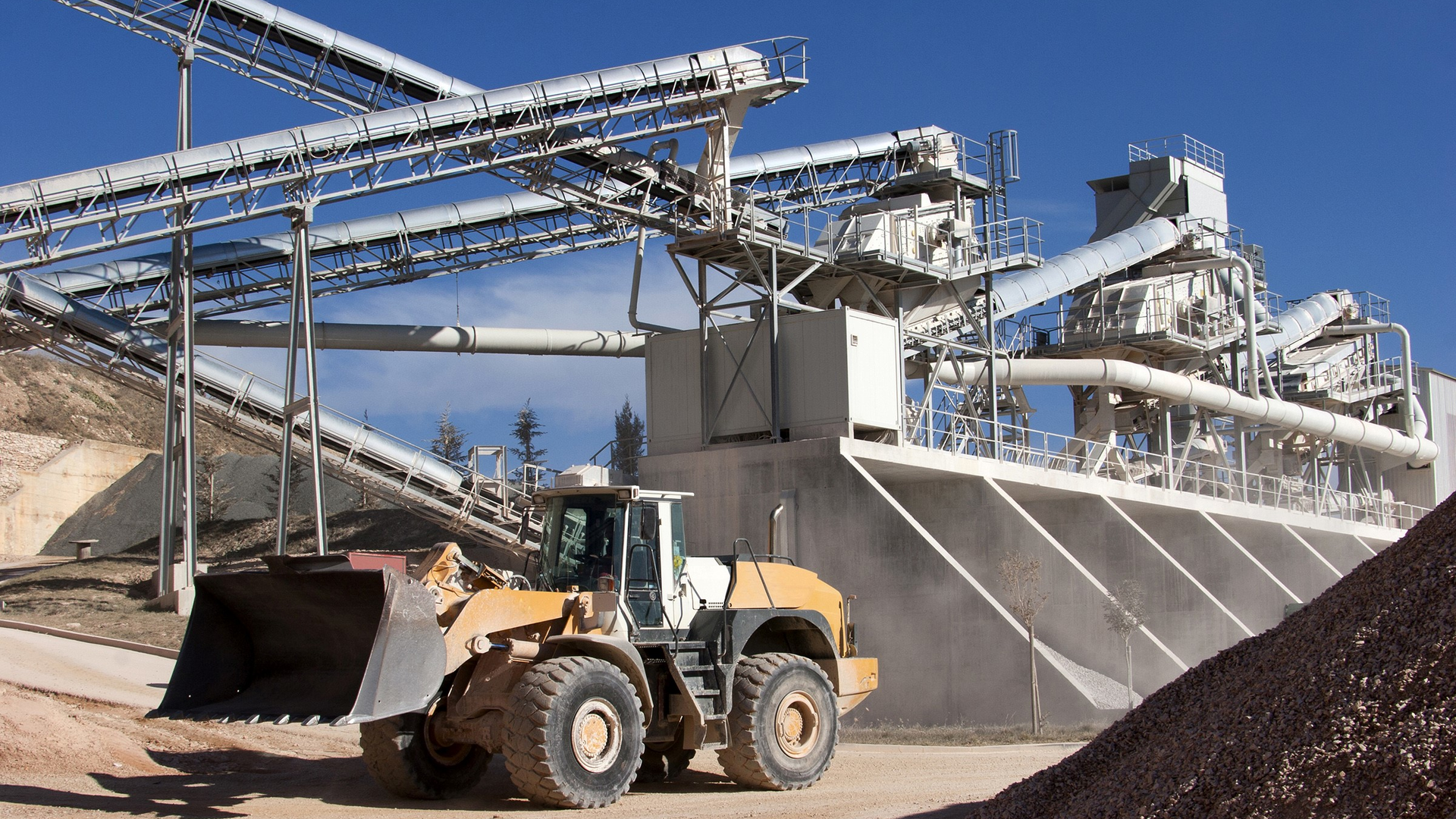

    Figure 1: Mining is a key industry that relies on dust collector systems.
    Figure 1: Mining is a key industry that relies on dust collector systems.

    Dusty environments in industries such as concrete, metalworking, mining, steel mills, grain, agriculture and feed are particularly susceptible to costly damage and downtime due to particulates getting into machines. The food and beverage processing industries, in particular, must also fight powder and dust in the air.

    Many of these industries use specific equipment for handling, storage and drying operations. Plus, the cereal, protein powder and starch processing industries are increasingly incorporating aggressive antibacterial chemicals meant to help eliminate the risk of contamination of food that is in contact with these machines — but these chemicals may also be damaging to equipment over time.

    It is easy to see why the industries mentioned would use a dust collector system. Other industries that may not have much powder in the air but produce a large volume of particulates include automotive factories, chemical producers and power plants. Removing dust and particulates from the air of these automated applications frequently requires the use of specific equipment that is resistant to a variety of materials, including aggressive agents.

    All that being said, it is imperative that companies in these industries incorporate highly efficient dust collector systems to eliminate or reduce as many of these maintenance concerns as possible. Pulse valves are often used to clean bag-type or cartridge-type filters in a dust collector system. These valves send a high-energy pulse of air through the blow tube, creating a shock wave down the filters to remove dust. Higher air acceleration and quicker valve response time help clean filter bags better and consume less compressed air, thereby lowering the cost of system operation.

    Courtesy of Emerson
    Figure 2: Pulse valves are used to clean bag-type or cartridge-type filters in a dust collector system.
    Figure 2: Pulse valves are used to clean bag-type or cartridge-type filters in a dust collector system.

    Ideally, pulse valves should provide a high peak pressure blast of air not only to achieve more effective dust collection filter bag cleaning but also to extend filter life. Insufficient peak pressure and slow valve response time result in poor filter cleaning and wasted compressed air — an expensive consumable and a key element in market differentiation.

    Pulse valve design

    When considering pulse valve characteristics, key attributes sought by OEMs, engineers, purchasing managers and end users alike include robust performance, reliability and ease of use. Today’s more popular pulse valves offer users a simplified design that helps maximize valve performance, translating into longer system uptimes. These valves are specifically developed for filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Those applications require high peak pressure, high flow rates, long life and extremely fast valve opening and closing for effective filter cleaning while minimizing compressed air waste. Some pulse valves are specified to provide a long operating life with over 1 million cycles.

    Courtesy of Emerson
    Figure 3: Examples of pulse valves (ASCO Series 353)
    Figure 3: Examples of pulse valves (ASCO Series 353)

    For the functional design of a pulse valve, there are multiple connection options, including threaded, dresser and even a quick-mount option that enables faster, easier and more secure installation. This is a major benefit for initial installation as well as replacement situations. Further, it helps if the pulse valve can be mounted in any position without affecting operation. Options for built-in silencers to reduce noise and prevent foreign particles from entering the valve are also important.

    Pulse valve innovations

    As with any technology, the ability to hold tighter tolerances for each component has driven performance and life expectancy forward. Plants must operate safely in hazardous or explosive environments and must comply with strict safety regulations. Pulse valves need to meet global approvals, including UL, CSA, RoHS, ATEX, CE and other certifications suitable for worldwide use. Be sure that you are working with a company that provides a range of optional waterproof and explosion-proof solenoids for use in potentially explosive atmospheres, as well as one that offers extended ambient temperature ranges.

    Solution-solving capabilities

    Whether someone is an OEM, engineer or purchasing manager, there are multiple concerns that affect every buying decision. It is not only about the latest technology, but also about how easily that technology integrates with what a company currently works with, how efficient the new technology will be, how long it will last, its maintenance needs and how it will affect existing components and costs.

    When working with a valve company, the ability to provide quick delivery and outstanding technical support can help ensure smooth operations for your facility. Long lead times can slow down or shut down your processes, so when talking with your supplier, be sure to ask if they offer an express shipment program to ensure the quick delivery of products. Long lead times can cause a lot of trouble, especially for OEMs. Same-day shipping with ensured availability is ideal and can be an important factor in avoiding extra downtime in the plant.

    Michael Russo has been with Emerson since 2007 and is the product marketing manager for dust collector systems. In this role, he leads ASCO’s industrial marketing direction and strategic vision for dust collector systems. Russo has been involved in new product development efforts and has been closely aligned with customer needs and requirements. Prior to his current marketing role, he was the senior key accounts specialist managing several of ASCO’s largest customers.
