Cavitation and net positive suction head (NPSH) issues are common detriments to effective pump operation that are often misunderstood. Entire plant systems can fail unexpectedly as a result of a mechanical-seal or pump-component failure. Plant operators may say, “it sounds like gravel is being pumped through our pipe” or “the pipe is shaking” or even “the pump components have dissolved into nothing.” When such failures are assessed further, operators often conclude that cavitation and NPSH are ultimately to blame for the seal and pump failure. As a result, all process engineers know that pump-suction design is most critical to ensuring reliable operation of any piping system.

Although NPSH sometimes seems confusing, it can be simplified when viewed as a part of a monetary budget. In the same way that a company may default if withdrawals exceed deposits, a pump may be destroyed if it withdraws more NPSH than the NPSH budget provided by the piping system. If the pump has a surplus of NPSH (i.e., NPSH required is less than NPSH available), then vapor is not formed and there is no potential for cavitation. Conversely, if the system has an NPSH deficit where the pump withdraws more than what the system provides, then vapor will form and destructive cavitation will occur.

What is cavitation? Cavitation is the implosion of vapor bubbles within the pump’s pressure stages. Cavitation occurs only if vapor exists. Systems without vapor do not cavitate. So where does vapor form? Vapor can form upstream of the pump, within the pump or both. Pump operators know cavitation is noisy and destructive. When vapor implodes, the liquid walls collapse and produce shock waves of incredible force that cause destruction upon impact. Like a small jackhammer striking a surface at a rate of 10,000 times per second, cavitation shock waves damage all surfaces, no matter the hardness or thickness.

Blackmer Cavitation PR0819

The imploding vapor bubbles within a liquid that cause cavitation in a sliding vane pump can lead to deterioration of the vanes.

These shock waves can cause excessive vibration and noise within the pump, which can result in significant damage to internal components. This cavitation damage will set off a chain reaction of negative effects that can include loss of operational efficiency, elevated maintenance and part-replacement costs, pump downtime and in the worst-case scenario, total pump failure.

This article illustrates how a specific type of pump technology — positive displacement sliding vane — incorporates a technology known as the cavitation suppression liner that mitigates and even eliminates the harmful effects of cavitation.

Blackmer Cavitation PR0819

The difference in a vane that has been subject to excessive cavitation (left) is obvious when compared to the appearance of a new vane.

The challenge

Plant operators and process engineers often focus attention on the pump’s NPSH required. After all, cavitating can be avoided if a pump requires less NPSH than the system’s NPSH budget. Unfortunately, this perspective misses the fact that vapor is often formed upstream of the pump. This is especially true when transferring fluids with high vapor pressures, such as liquefied petroleum gas (LPG), anhydrous ammonia (NH3), gasoline, acetone, various types of refrigerants and condensates, and those that are highly viscous. The vapor pressure of these liquids is greater than any NPSH provided. In other words, these applications operate at a deficit from the start: The liquid demands more than what the system could ever provide.

Even in low-vapor-pressure liquids like water, lube oil or diesel fuel, the physical system layout may require poor conditions such that the NPSH budget provided by the system is so low that no pump could operate within the allowance.

An NPSH deficit is created in either of the above scenarios. A portion of the fluid transitions to vapor and creates a multiphase or “boiling fluid.” The vapor concentration and size increases as the level of NPSH deficit increases. However, regardless of the vapor concentration or size, the vapor will implode during a pump’s pressure stage, causing violent reactions that are the root cause of cavitation’s destruction.

Several pumping setup conditions can result in a dangerous NPSH scenario. These conditions include:

  • Excessive suction-lift requirements
  • Long piping runs
  • Flow restrictions at the inlet, such as the presence of a piping elbow
  • A clogged strainer
  • Partially closed valves that can restrict flow
  • Unnecessarily high flow velocities that are caused by undersized piping

An operator hears destructive cavitation as elevated noise levels during system operation. Vapor-bubble implosions within the pump will make it sound as if the pump is filled with bits of gravel.

If these cavitation-causing conditions are present and allowed to persist, damage to the pump and its components is almost certain to occur. Dynamic components are especially sensitive to cavitation. Specifically, the pump’s mechanical-seal faces will briefly separate as the implosions occur. The shock-wave pulsations create a condition known as “chattering,” which leads to premature wear and failure of mechanical seals. Additional failure should be expected in other wetted parts, such as bushings, impellers, back covers, volutes, casings, heads, gears, idlers and vanes.

While we know that cavitation can be minimized by optimal system design, system engineers should familiarize themselves with a technology that is well-suited for continuous cavitation service. Such technology would minimize or eliminate the destructive effects of cavitation and provide better performance and long pump life.

Blackmer Cavitation PR0819

The cavitation suppression liner from Blackmer eliminates the destructive “chattering” that is a result of cavitating fluids by breaking large vapor bubbles into smaller bubbles before they have a chance to implode. The result is less noise, less wear and less chance that the pump will be susceptible to disruptive failures.

The solution

As mentioned, the key to eliminating pump cavitation and its harmful side effects is to eliminate vapor. No vapor means no cavitation. Alternatively, system engineers can set operational parameters in such a way that the NPSHa (budget) will always meet the NPSHr (consumption). However, most systems require a bulletproof solution designed for the worst conditions — a technology designed for unforgiving physical constraints and inevitable vapor formation.

The benchmark series of sliding vane pumps from Blackmer has been further improved with the invention of the cavitation suppression liner, which allows the pumps to better transfer multiphase liquids with high vapor pressures and zero NPSH.

The cavitation suppression liner defeats cavitation through a design that stops or mutes destruction before vapor implodes. In other words, it defuses a bomb before an explosion is triggered. This feature creates internal recirculation jets that break apart vapor bubbles before they can implode. While the vapor levels are not reduced, the size of each vapor bubble becomes a fraction of what it would have been. The fact is this: smaller bubbles yield smaller implosion reactions.

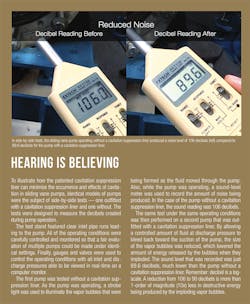

The cavitation suppression liner also allows a controlled amount of fluid at discharge pressure to bleed back toward the suction of the pump. This breaks the larger vapor bubbles apart into smaller vapor bubbles before they have a chance to implode. The net result is less noise, less vibration and less wear, which has been verified through side-by-side tests featuring one sliding vane pump model with a cavitation suppression liner and one without (see sidebar on page 15).

Sliding vane pumps outfitted with cavitation suppression liners are available for use in the handling of a wide variety of fluids in both stationary and transport applications. Each pump is rated to operate under continuous cavitation without any negative effect on pump-component life. In fact, some models of propane pumps have some of the highest cavitation levels (in cases of 30% to 40% vapor), which allows for continuous operation in extreme environments.

Engineers are able to assess any problems in the pumping system and determine where a cavitation suppression liner is needed. Perhaps it’s an application with numerous system-design flaws, such as long piping, undersized piping or tumultuous pipe routing. Most pumping setups would benefit from the operational flexibility provided by a cavitation suppression liner.

Blackmer Cavitation PR0819

Conclusion

Unchecked cavitation will harm pumps in many ways, among them excessive wear of internal components, breakdowns, product leakage and compromised operation. A reliable solution to the negative effects of cavitation can be found in the capabilities of the cavitation suppression liner, which can be paired with sliding vane positive displacement pumps. If you are struggling with a severe-duty application or problem pipe routing that leads to the creation of damaging cavitation, outfitting the sliding vane pump with a cavitation suppression liner can be the ultimate solution.
